Upload a photo, adjust the area, and get accurate measurements.
Before taking the photo
- Use one blank US Letter sheetPlain white paper, 8.5 × 11 in (215.9 × 279.4 mm). No printed pattern required.
- Center it on the same planePlace the sheet near the center of the area you will measure, flat against that same wall surface—not a raised sign or separate board.
- Tape the top and bottom centersUse two small strips at the middle of the top and bottom edges only. Do not cover any corner; keep the sheet flat and its edges visible.
- Photograph straight onKeep the phone level and face the area near its center. Include the full target and paper; avoid glare, blur and obstructions.
Where to place your paper
Click to enlarge

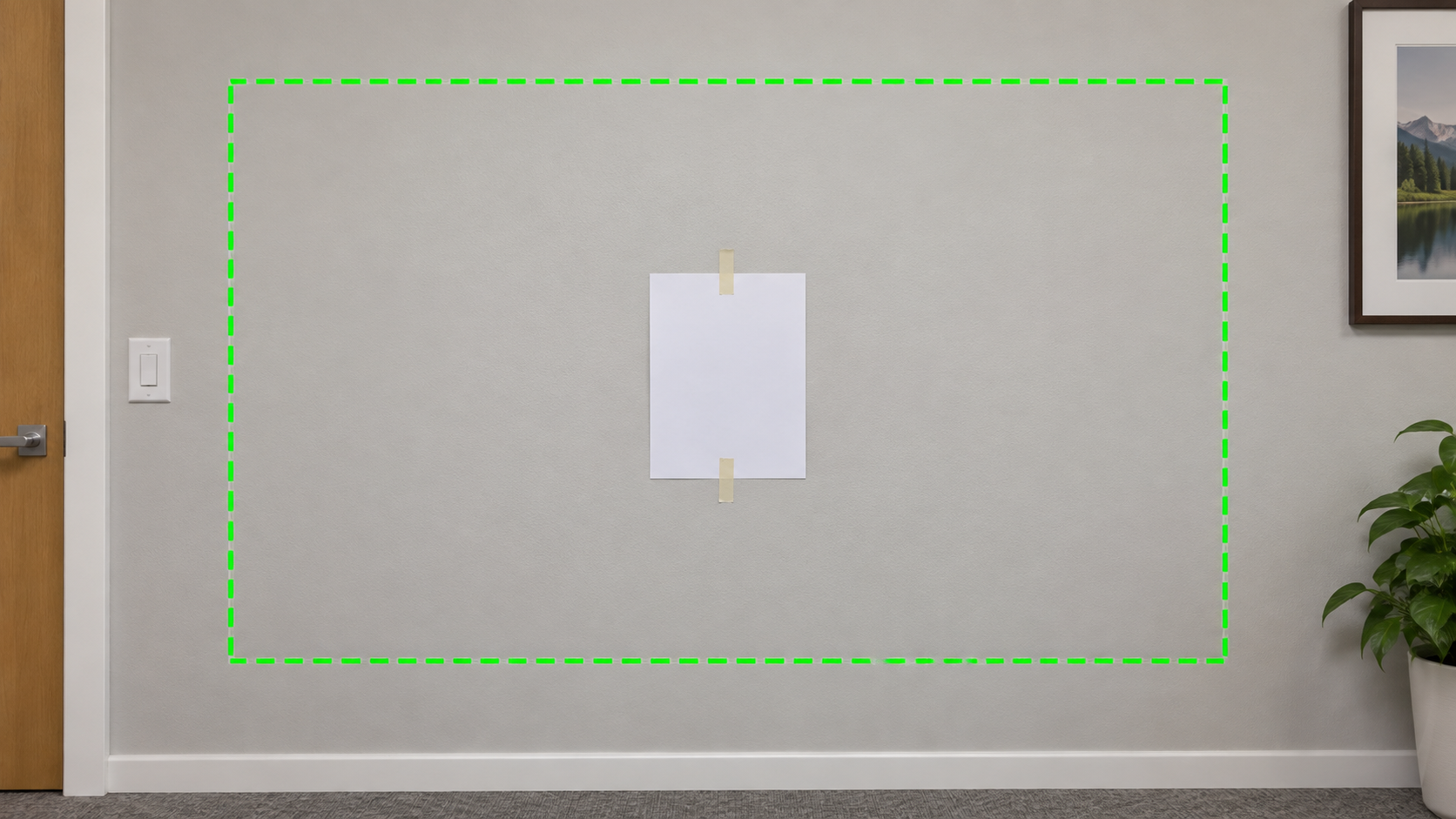

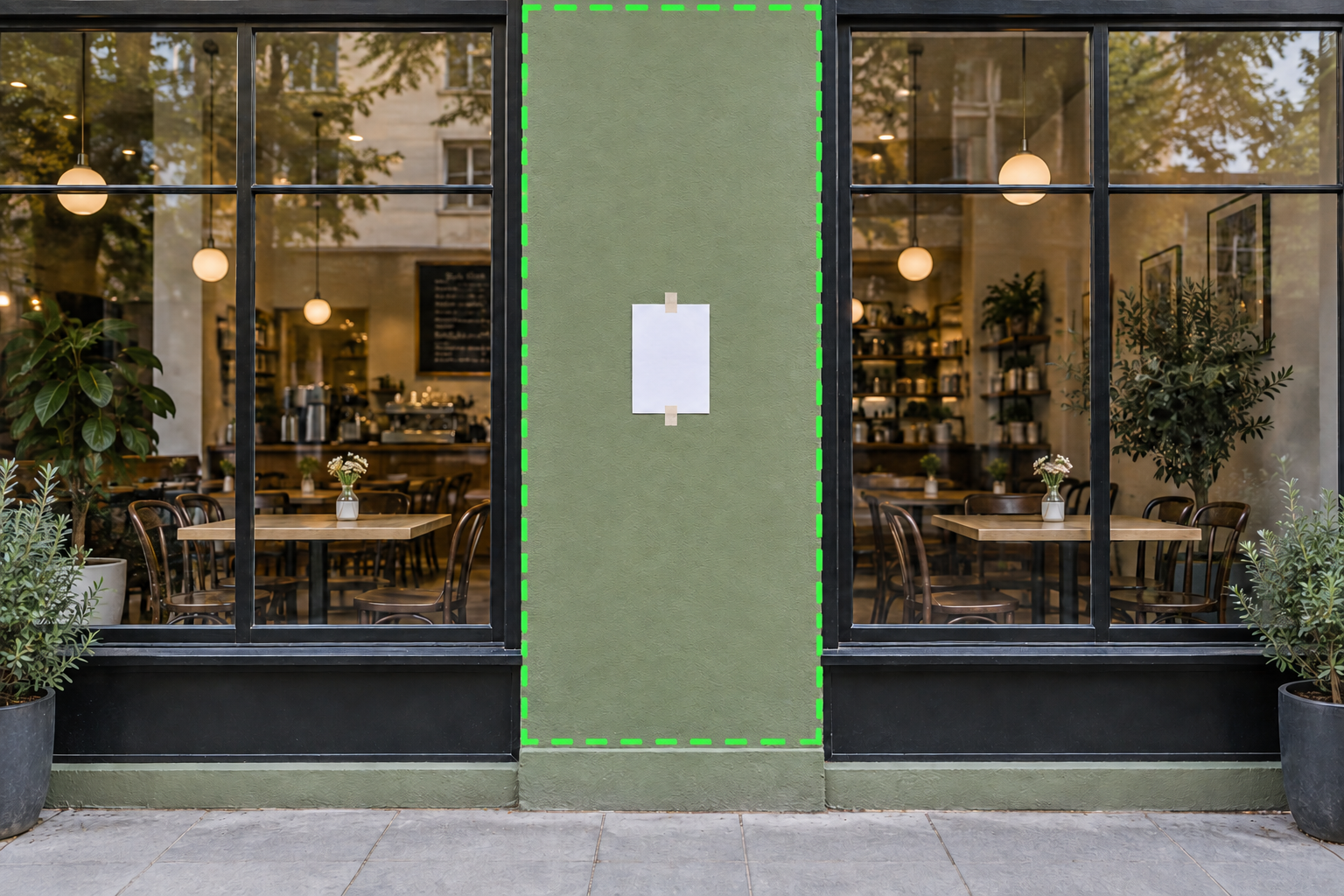

Green dashed outline = intended measurement area. It is an illustration overlay: do not draw on the wall. Center one blank Letter inside it, on the same plane.
Upload Photo
Upload a wall photo and mark the exact area where the sign will be installed.
Accurate measurements start with a clear photo.
For best results, keep the full sign visible, avoid strong glare, and use a standard US Letter sheet for calibration.
Measurement Result
Developer Debug
Stage AO Shadow Preview
Development only. This preview evaluates the current four-corner target frame through the reference-plane reliability gate but never changes calibration or measurement data.
Upload a photo to run the isolated AO shadow path.
